Simple Function Generator

£3.49

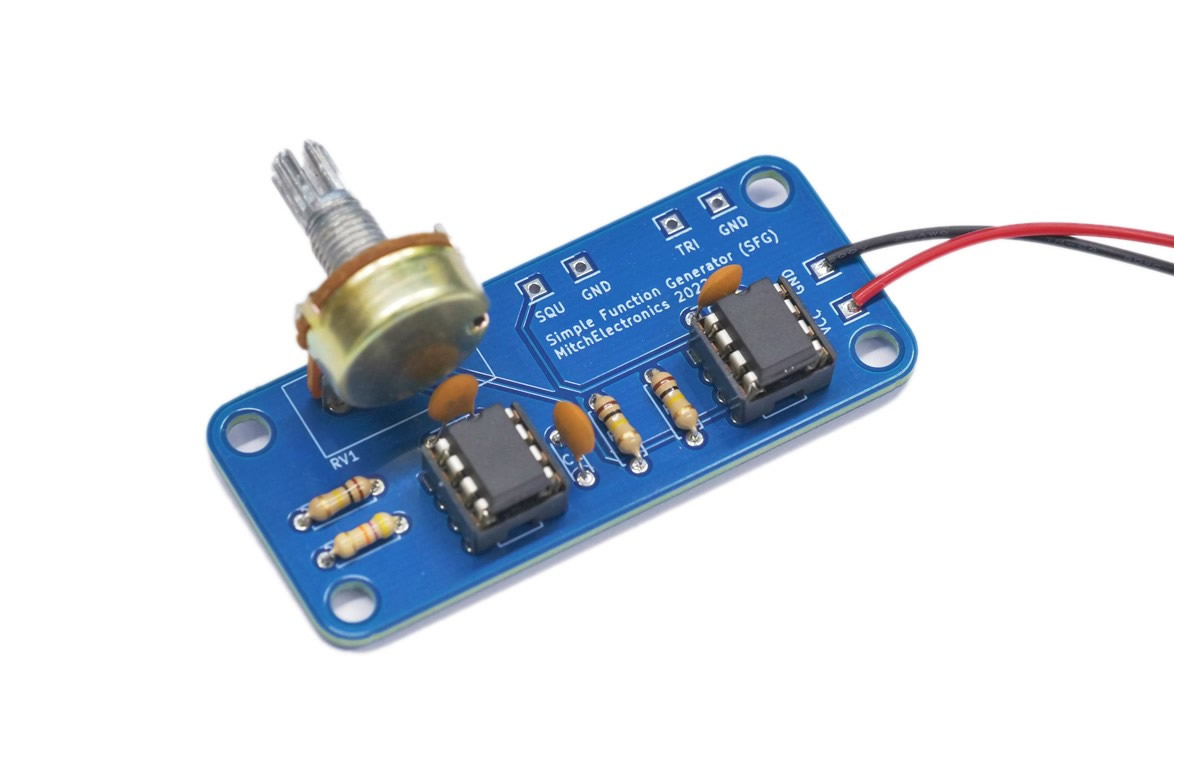

Simple function generator kit

11 in stock (can be backordered)

SKU: SFG Categories: , Tags: , , ,

Description

In just about every electronic circuit there will be some signal that changes with time and in many circuits this signal may be continuous. For example the electricity from the mains supply has a sinusoidal shape (like an ocean wave). Another example would be the clock for a computer which has a square shape.

Imagine a scenario where a digital circuit has been created and requires a clock from an external source. One could be built especially for the task however the clock source would most likely have a fixed frequency. Even if one was designed to have a variable frequency (which takes time), the device would only output a square wave. This is where the humble function generator steps in!

Not only does the SFG (Simple Function Generator), have both a square and triangle output but the frequency is also adjustable. The square and triangle wave are generated by the same source and thus are always in the same phase which means that the two waveforms follow each other constantly (useful if both waves are being used). But how does this circuit work? What active devices are used to create the oscillations and how is the frequency adjusted? Let’s find out…


Product Specifics
  • Component Count : 16
  • Battery Powered? : No
  • Operating Voltage : 5V to 20V
  • Operating Frequency : Variable
  • Output Voltage : Square (0V to VCC – 1.5V)
  • Output Current : Max 20mA
  • Dimensions (PCB) : 52mm x 27mm
  • Mounting Holes : No
  • Prebuilt : No – Kit form
  • Batteries Not Included

Documentation

Download Instructions (PDF)

Download Electronics Construction Manual (PDF)

RoHS Details

All RoHS & REACH Compliant Parts

All parts sold by MitchElectronics are compliant with RoHS and REACH directives which ensures that they can be used in commercial environments as well as complying with environmental laws. Watch the video below to learn more about RoHS compliance and why it may be important for your next DIY project!
